Triplus
The evolution of push-fit soundproof waste systems.

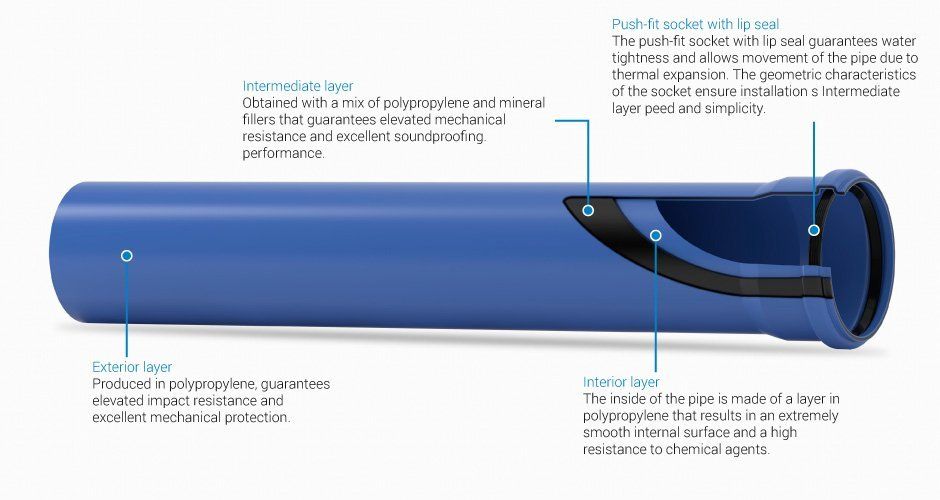

The Triplus® pipes are in fact made up of three layers of material, which, when joined, result in a system with extremely good mechanical characteristics, even at low temperatures, and an excellent soundproofing performance.
Triplus® is a push-fit system that includes triple layer pipes, fittings and accessories, industrialised, produced and patented by Valsir, that guarantees the levels of low noise emissions of waste systems required by the regulations, laws and standards in force.
Characteristics of excellence
The intermediate layer is created with a patented polypropylene-based (PP) mix with mineral fillers (MF) such as to provide the Triplus® system with excellent mechanical characteristics at low (impact resistance at temperatures as low as -25°C) and high temperatures (continuous discharge with temperatures as high as 95°C).
The Triplus® waste system can transport waste waters with PH values between 2 and 12, it has a high resistance to the most common chemical compounds and is characterised by an extremely smooth internal surface that prevents the build-up of internal deposits inside the waste network.
An extremely wide range
More information

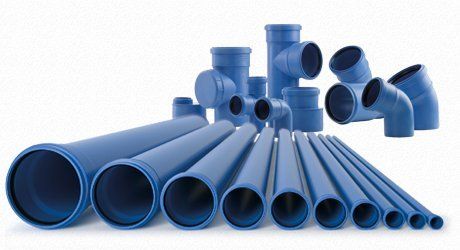

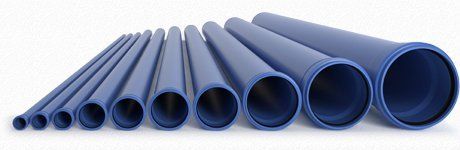

The range is composed of pipe lengths between 150 mm and 3 m and is characterised by a wide choice of fittings and accessories that allows the construction of the most varied system configurations.
The smaller diameters such as 32, 40 and 50 mm are used for the branch pipe connections on each floor, while the larger diameters such as 250 mm are used for the waste manifolds.
Significant acoustic performance
More information
When a waste system is in use, noises are generated inside the pipelines causing it to vibrate from the fall of the liquid being discharged.
Most of the noise generated spreads inside the pipe but the vibrations that are generated are transmitted from the walls of the pipe to the surrounding area and to the bracketing systems and consequently to the building structure.
Solutions for all requirements
More information
Valsir is the only company that can supply a triple layer waste system with a Triplus® “ventilation branch”. This is the ideal solution in high-rise buildings with a high simultaneous use factor of the sanitary appliances.
Accessories for all installation requirements.
More information
Surface mounting of pipes requires the use of suitable brackets that must withstand the weight of the pipe, the weight of the waste water and the forces that are generated by expansion and contraction.
Push-fit joints, installation ease and rapidity
More information
Triplus® ensures practical and rapid installations without the use of glues, electrical appliances or special tools, thanks to the push-fit jointing system.
